3 Shape Trios 4 Intraoral 3D CAD Scanner

$8,250.00

Tax included

TRIOS 4 offers a wireless option for more convenience and ease-of-use. This wireless option gives you freedom of movement and makes the entire scanning process easier. The scanner also takes digital impressions with authentic and natural colors which allow you to pinpoint tooth color to evaluate treatment and improve patient communication. In addition, the new Intraoral Scanner has AI scanning technology that removes excess soft tissue during scanning, thereby simplifying the scanning process.

Description
Product Details

Technical Specifications

Scanner Type	Without cable
Weight	375g
Dimensions (LxWxD)	278 x 49 x 40 mm
Tip Size (mm)	Not specified
Scanning Area (mm)	Not specified
Scanning Depth (mm)	Not specified
Tip Material	150 cycles
Scanning Speed	1875 images per second
Scan Time	35-45s full arc scan
Accuracy	6.0 μm
Autoclavable	Yes
Supported File Extensions	STL, PLY, DCM
Imaging Technology	3D technology
Color Resolution	High definition
Tip Reversibility	Yes
Connectivity	No line
Automatic calibration	Not specified
Remote control	Yes
Battery life	Not specified

Minimum Requirement

CPU	Intel Core i7-8700 or higher
RAM	16 GB or more
Hard Disk	1 TB SATA Hard Disk Drive (7200 RPM, 6.0 Gb/s) or better
Graphics Card (GPU)	NVIDIA® RTX 2060 6GB DDR3 or higher *
Operating System	Windows 10 Professional (64-bit) or later versions of the Windows operating system

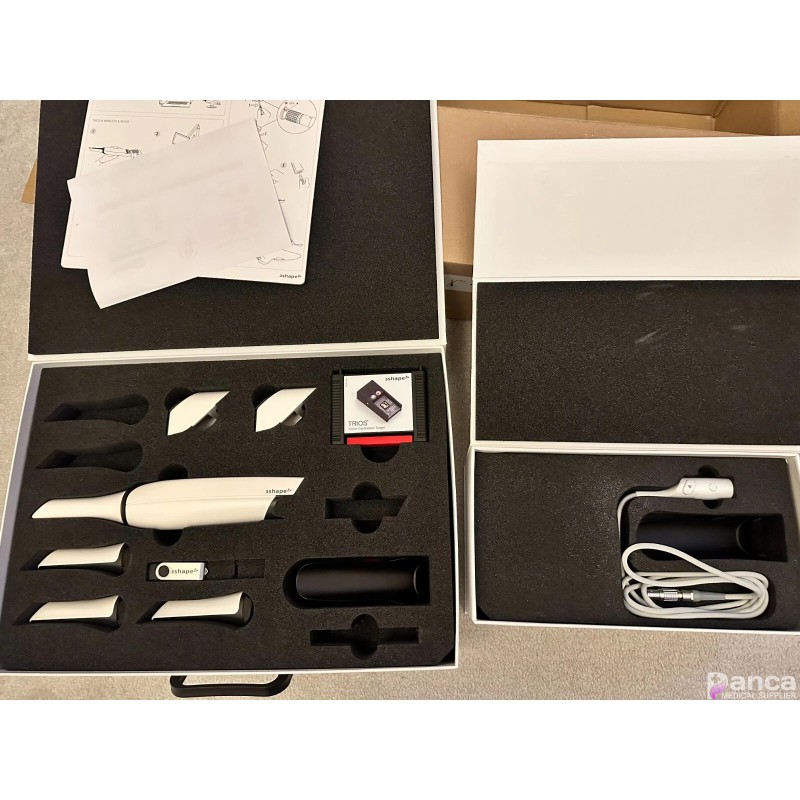

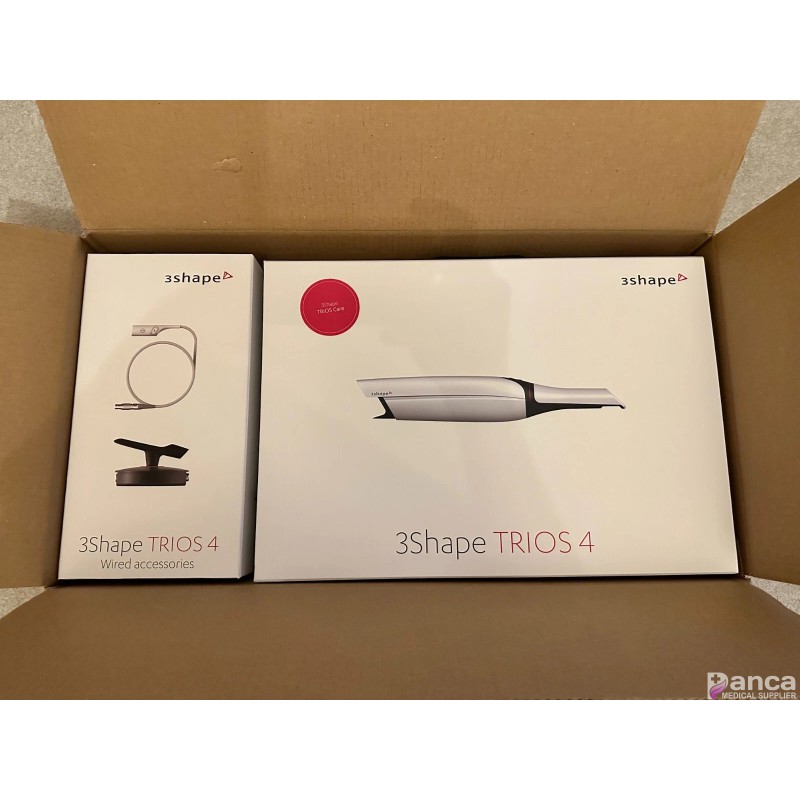

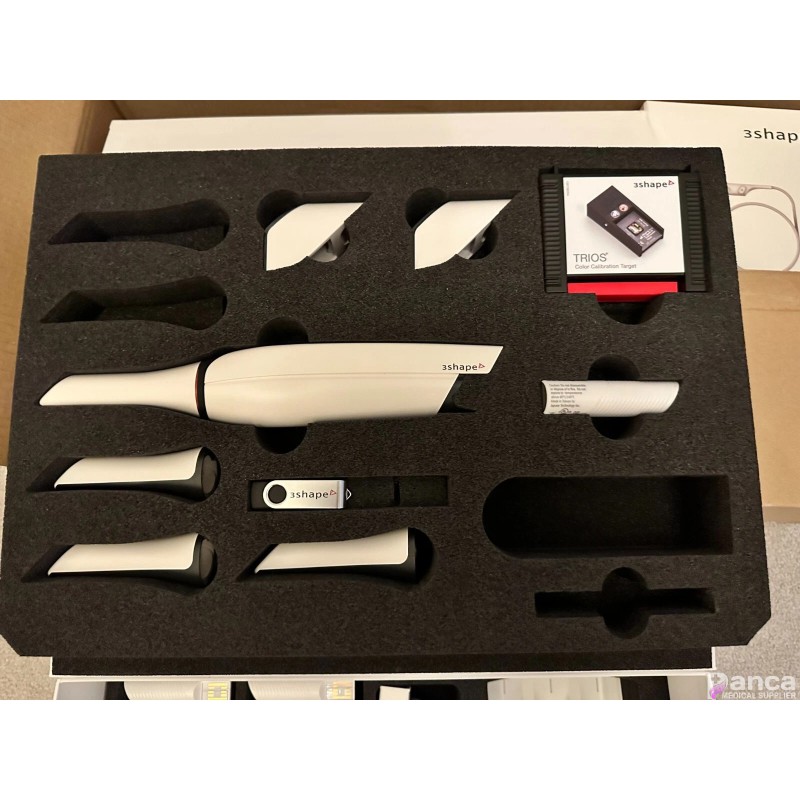

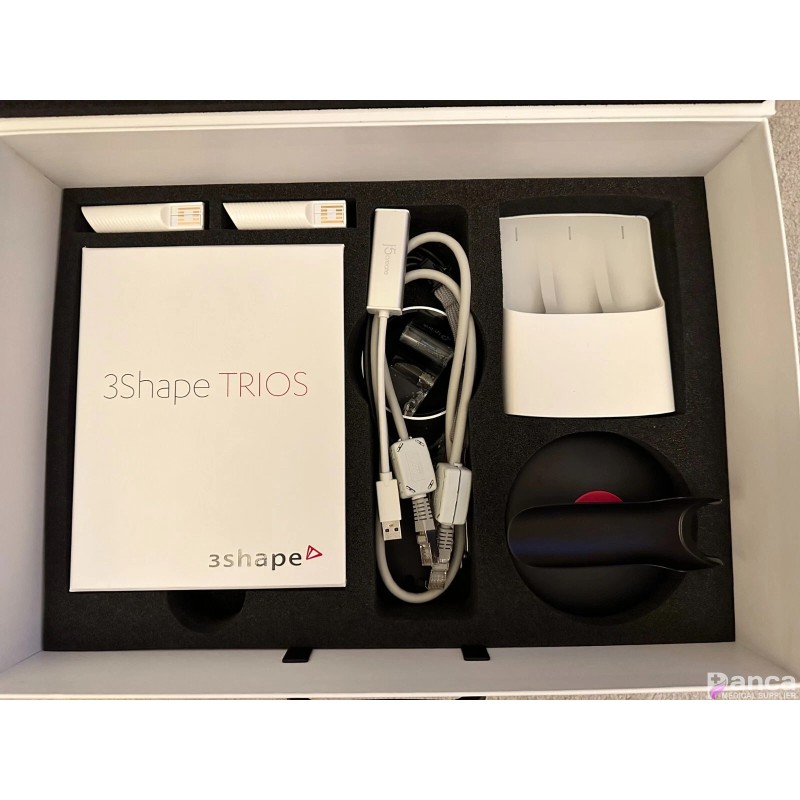

Purchase includes:

– TRIOS 4 Wireless scanner wand
– 5x TRIOS 4 scanner tips
– TRIOS 4 Protection tip
– TRIOS 4 Calibration kit
– 3x batteries
– Charger incl. power cord
– Wall mount kit for charger
– TRIOS 4 Wireless scanner pod
– Wireless adapter
– TRIOS 4 scanner pod for wired setup
– TRIOS 4 Cord
– Ethernet cable
– USB to Ethernet adapter
– Pod PSU incl. power cord
– Pod installation guide
– USB Dongle with software
– 3Shape subscription dongle
– Documentation
