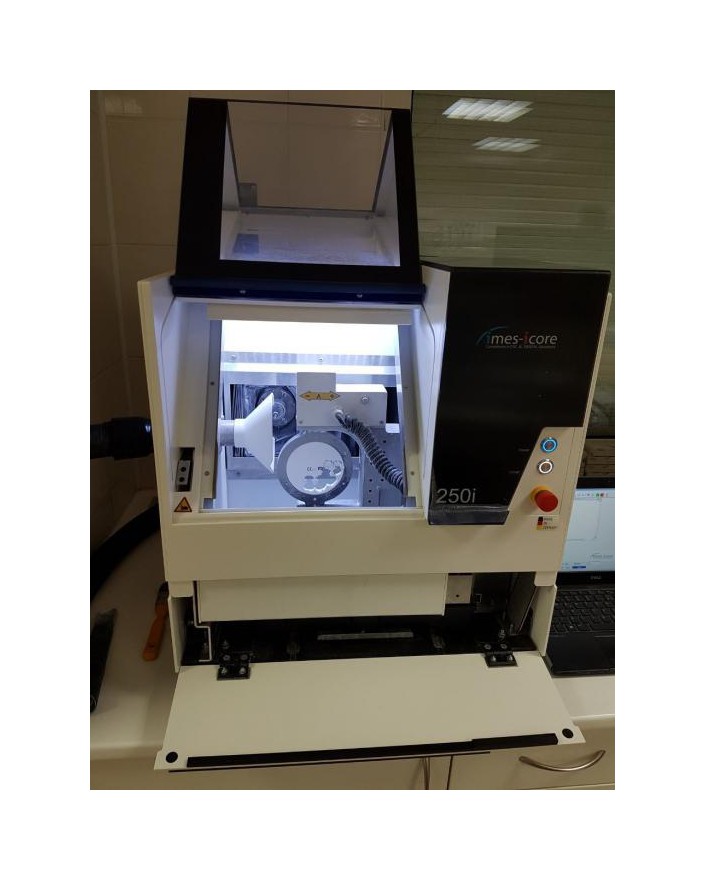

Imes Icore CORiTEC 250i CAD/CAM Milling Machine

Features

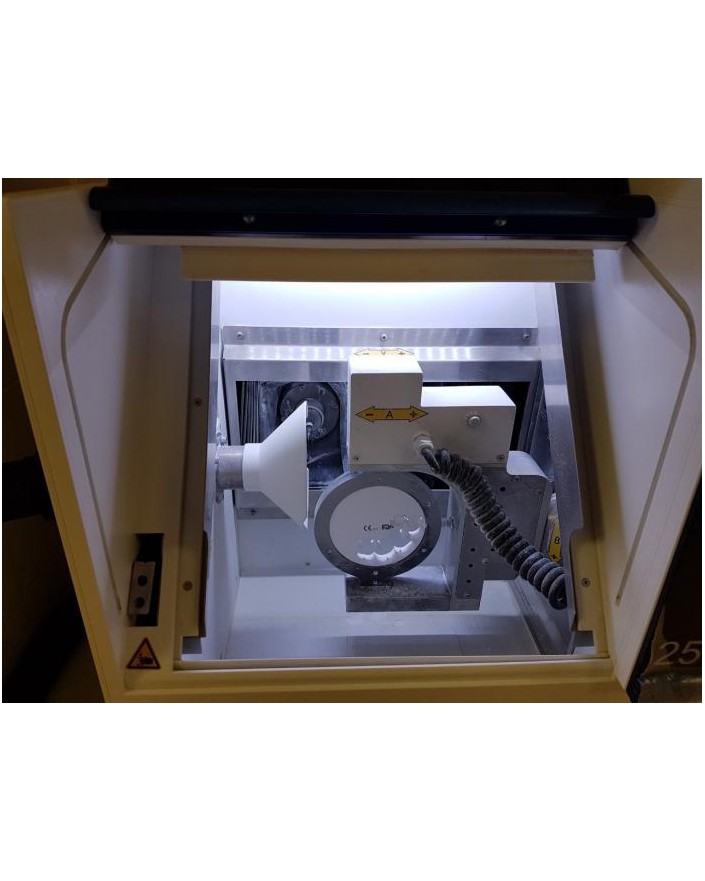

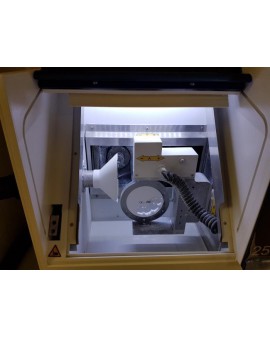

• 5-axis machining system with up to 30° axis orientation
• No extra rebuild between wet & dry processing necessary
• Tool runtime control/breakage control
• Integrated cooling circuit for cooling lubricant
• HF spindle up to 60,000 rpm
• High-resolution and high-performance micro-step controllers and motors on all axes
• Air purge system and cooling nozzles for wet processing are integrated in the spindle holder
• Extraction system to extract the resulting particulate matter
• Automatic compressed air and coolant monitoring
• For processing of zirconium dioxide, PMMA, wax, plastics, and grindable block materials
• Control software Remote DENTAL 2.0
• Incl. control PC with Windows 7/8



Specifications

• Tilt angle for machining with 98mm blank is A-axis +/-30°; B-axis +/-25°
• Wet processing integrated only in CORiTEC 250i
• Microstep motors
• Tool fitting 3mm shafts
• 10-fold tool changer
• Manual workpiece changer
• Weight of 85 kg
• Size of 537x625x612mm (width/depth/height)

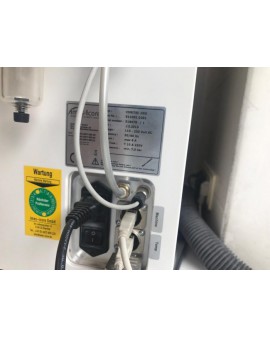

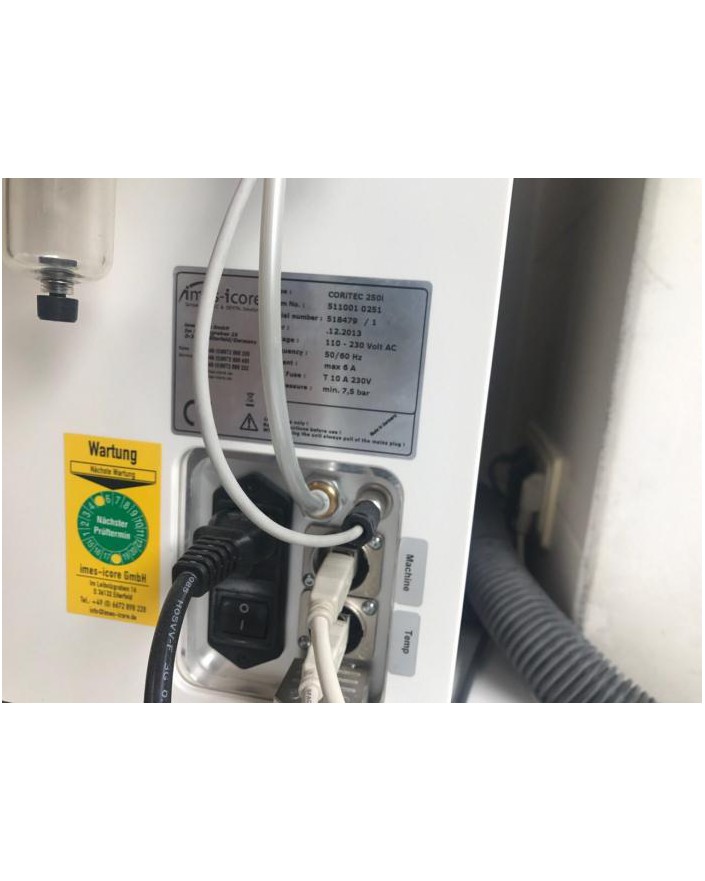

• 100V-240V; 50-60 Hz; 900W
• Compressed air supply is 6-9 bar constant supply, 50 liters/min
• Processes 98mm/98.5mm blanks; CAD/CAM blocks (3-fold adapters), Lava frames
