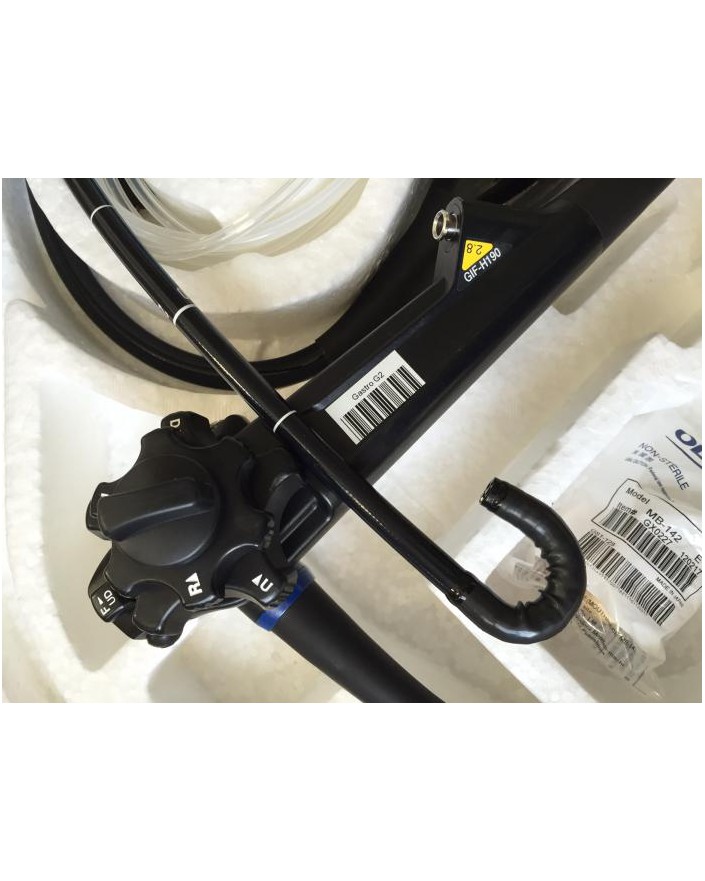

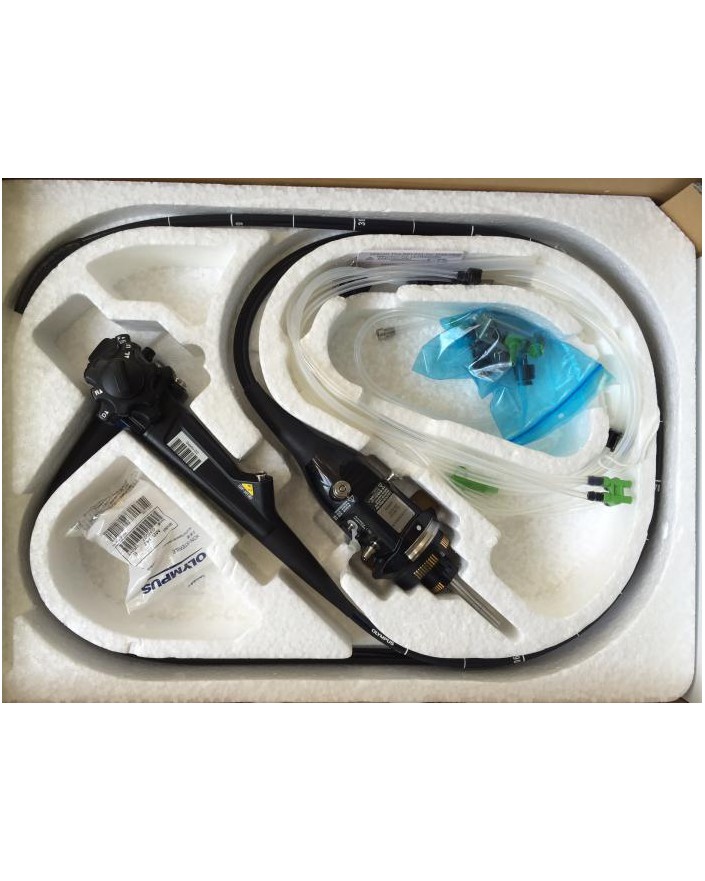

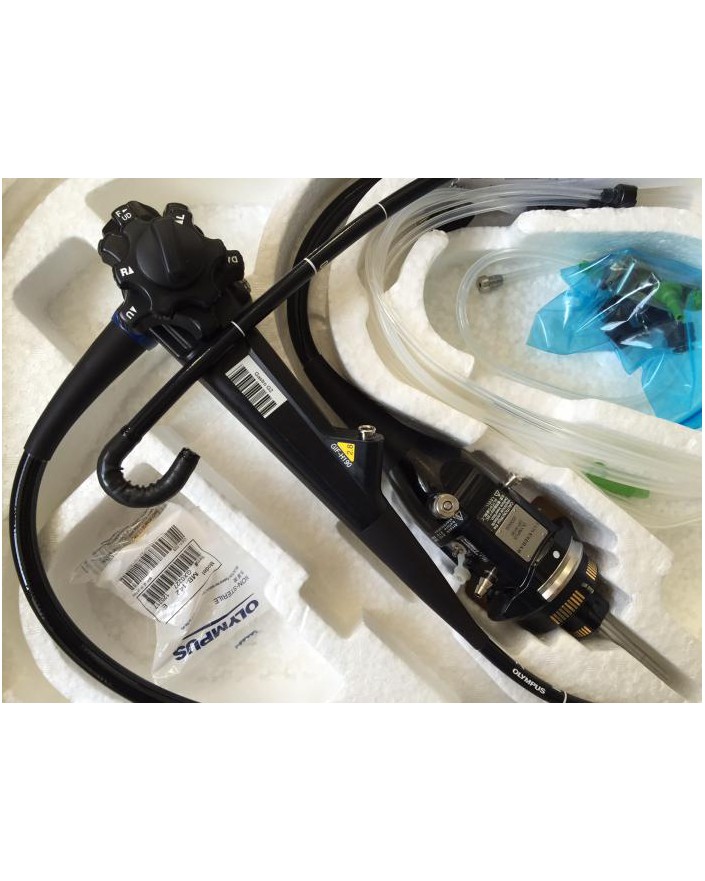

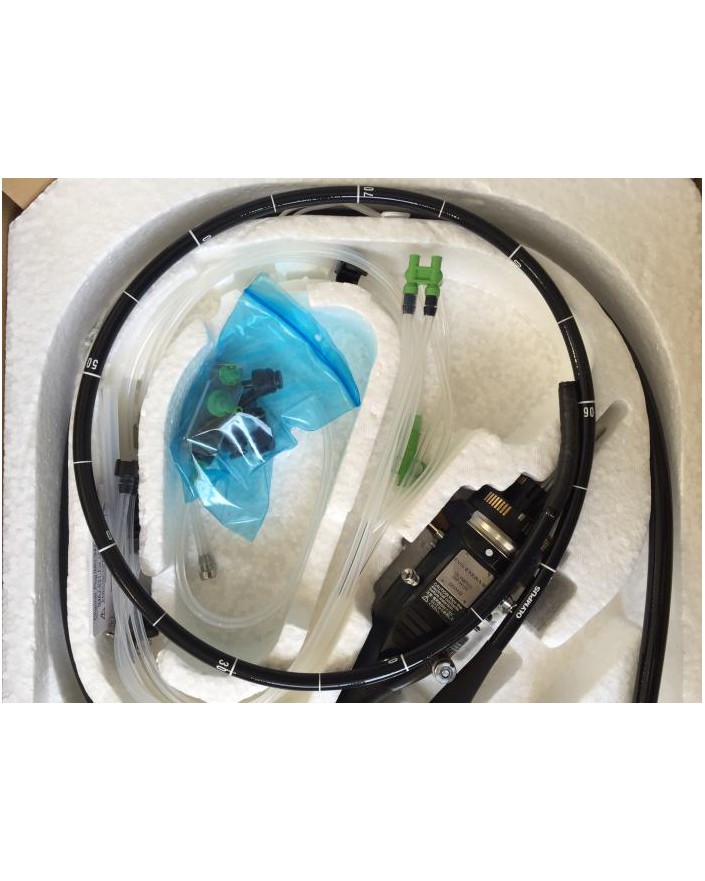

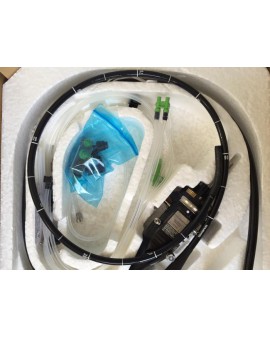

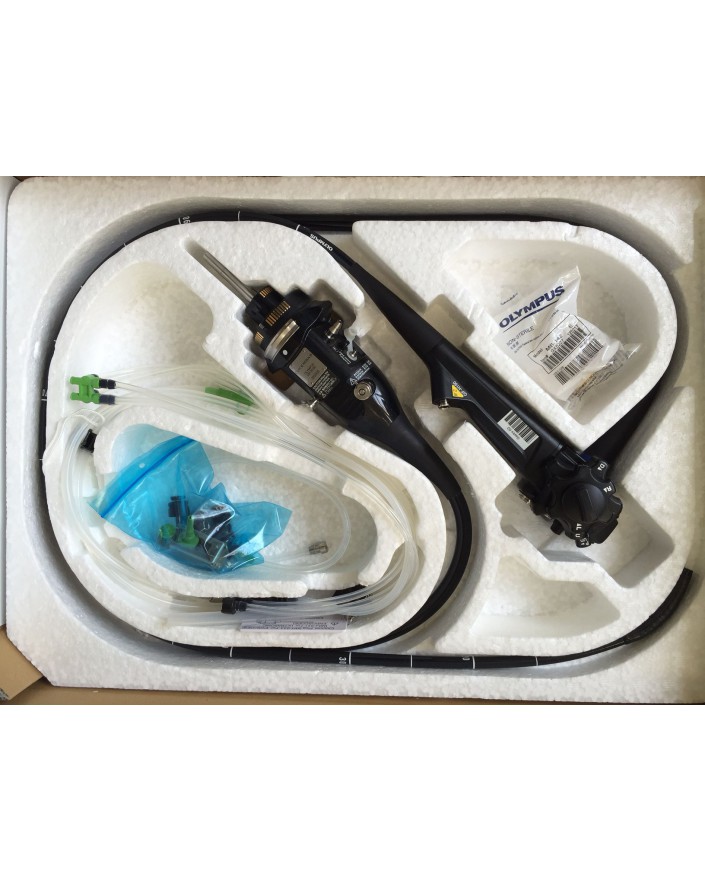

Olympus EVIS EXERA III GIF-H190 Gastroscope Endoscope

The EVIS EXERA III GIF-H190 gastroscope has a substantially slimmer design with HD image quality. The GIF-H190 introduces a new coupling design for easier setups prior to and in between cases,it is also completely submersible eliminating the need for water-resistant cap and reducing the risk of expensive repair due to accidental immersion.

• HD Image Quality delivers high-definition observation capabilities, even in a new, slimmer scope design.
• Improved NBI (Narrow Band Imaging) and significantly brighter images provides twice the viewable distance of EVIS EXERA II 180 Series scopes.
• HD NBI provides contrast, which may aid in the interpretation of mucosal morphology, vascular patterns, and blood vessel appearance in patients with Barrett’s esophagus.
• Compatible with the 190 Series video endoscopy system.

Optical System

• Field of View: 140°
• Direction of View: Forward Viewing
• Depth of Field: 2 to 100 mm

Insertion Section

• Distal End Outer Diameter: 9.2 mm
• Insertion Tube Outer Diameter: 9.2 mm
• Working Length: 1030 mm
• Total Length: 1350 mm

Instrument Channel

• Channel Inner Diameter: 2.8 mm
• Minimum visible distance: 3.0 mm from the distal end

Bending Section

• Angulation Range:

• • Up: 210°
  • Down: 90°
  • Right: 100°
  • Left: 100°
